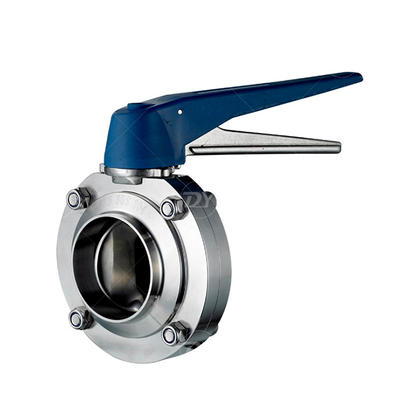

Sanitary Stainless Steel Plastic Gripper Butterfly Valve
Application

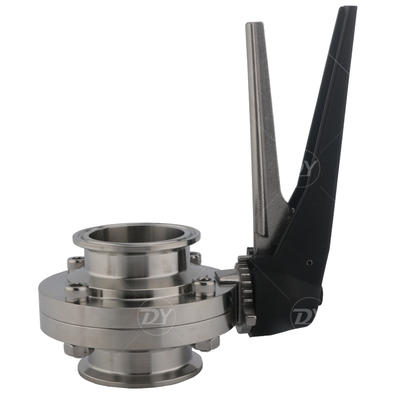

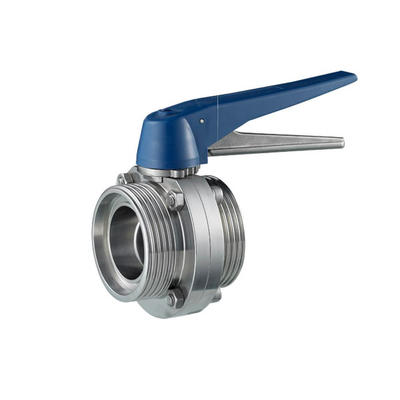

Our Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.
The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
All of the products have been 100% press tested before shipping.
It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries
Technical Parameters
| Product Wetted Steel Parts | AISI304/AISI316L | Provided with material inspection report | |||||
| Other Steel Parts | AISI304 | ||||||
| Size | 1/2"~6",DN10~DN150 | ||||||
| Seal material | EPDM/VMQ/FPM | ||||||
| Working pressure | ≤10bar(145psi) | ||||||
| Working temperature | PDM:-14~248ºF(-10~120ºC) | ||||||
| VMQ:-58~356ºF(-50~180ºC) | |||||||
| FPM:22~446ºF(-30~230ºC) | |||||||
| Other materials are avaible upon request | |||||||
| Sterilization temperature | 302ºF(150ºC,max 20min) | ||||||
| Outside surface treatment | Ra16~32uin(o.4~0.8um) | ||||||
| nside surface treatment | Ra32~64uin(o.8~1.6um) | ||||||
| Connetion ends | butt-weld,clamped ends,male ends, flange ends | ||||||

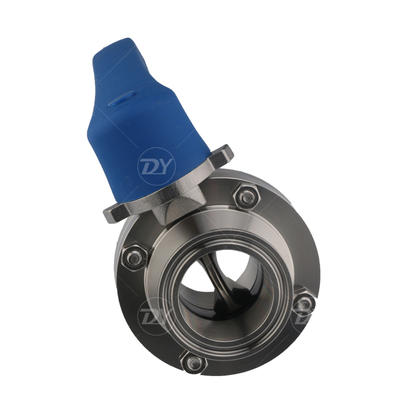

| neumatic head | Normally closed(NC)-Air to open,spring to close | ||||||
| Normally open(NO)-Air to close,spring to open | |||||||
| Air to air(AA)-Air to open,air to close | |||||||
