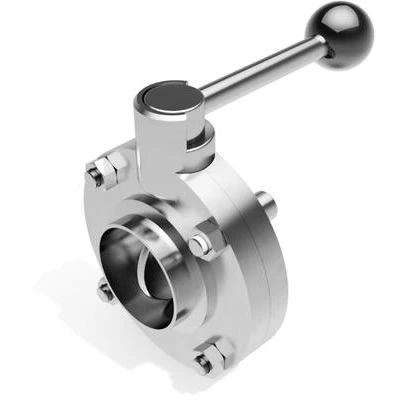

Sanitary Clamped Butterfly Valve with Stainless Steel Gripper Handle
Our Butterfly valve body could be offered with weld end, male end, female end and clamp end.
Applications
Butterfly valves,no matter manually or automatically,can be used in most fluid product applications in the foo-processing,pharmaceutical and chemical industries.
Operating Principles
The butterfly calves can be operated automatically through actuator or manually with the handle.The handle blocks the valve in the "open" or "closed" position,certainly,there are othe position available. The actuator push piston of axial movement into 90 degree so that it controls butterfly valve.
Parameters
| The Material of Gasket | NBR | ||||
| VMQ | |||||
| FPM | |||||
| End connection | Weld | Others upon request. | |||
| Clamp | |||||
| Thread | |||||
| Flange | |||||
| Handle | 3-position pull handle | ||||
| multi-position handle | |||||
| Actuator | Pneumatic Stainless Steel Actuator (vertical type) | ||||
| Pneumatic Aluminum Actuator (horizontal type) | |||||
| Electric Actuator | |||||
| Control | position sensor | ||||
| C-top controller | |||||
| C-top controller (AS-I) | |||||
