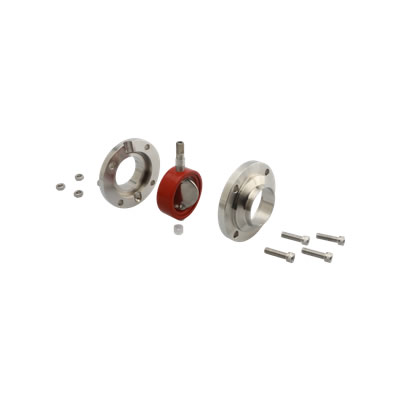

Sanitary Clamp Ss Pull Hand Thread Butterfly Valve
Our Butterfly valve body could be offered with weld end, male end, female end and clamp end.
Technical Parameters:
| Product Wetted Steel Parts | AISI304/AISI316L | Provided with material inspection report | |||||
| Other Steel Parts | AISI304 | ||||||
| Size | 1/2"~6",DN10~DN150 | ||||||
| Seal material | EPDM/VMQ/FPM | ||||||
| Working pressure | ≤10bar(145psi) | ||||||
| Working temperature | PDM:-14~248ºF(-10~120ºC) | ||||||
| VMQ:-58~356ºF(-50~180ºC) | |||||||
| FPM:22~446ºF(-30~230ºC) | |||||||
| Other materials are avaible upon request | |||||||
| Sterilization temperature | 302ºF(150ºC,max 20min) | ||||||
| Outside surface treatment | Ra16~32uin(o.4~0.8um) | ||||||
| Inside surface treatment | Ra32~64uin(o.8~1.6um) | ||||||
| Connetion ends | butt-weld,clamped ends,male ends, flange ends | ||||||
| Pneumatic head | Normally closed(NC)-Air to open,spring to close | ||||||
| Normally open(NO)-Air to close,spring to open | |||||||
| Air to air(AA)-Air to open,air to close | |||||||
