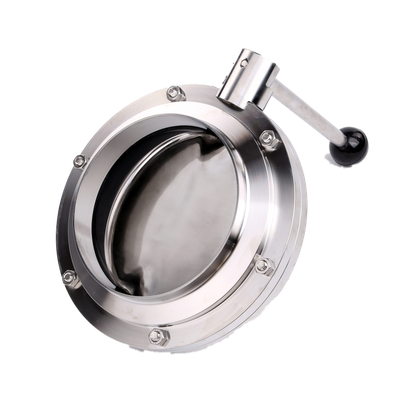

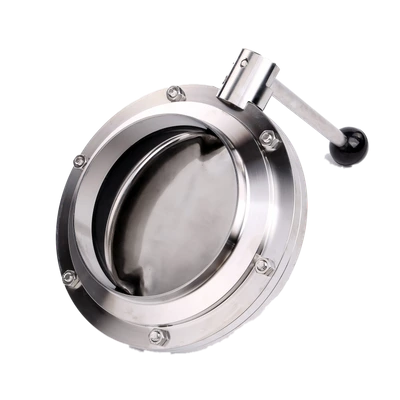

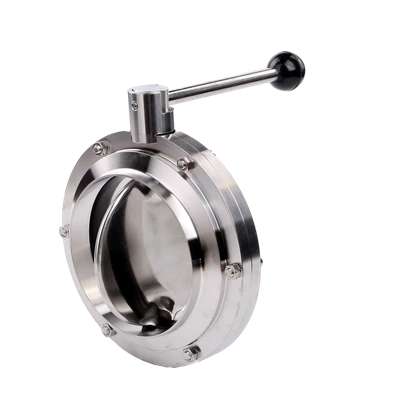

Sanitary Ss Pull Handle Welding Butterfly Valve
Our Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.
The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
All of the products have been 100% press tested before shipping.
It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.
Specification
| Product Name: | Sanitary 3-Piece Butterfly Valve with SS Pull Handle |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR |
| Mex working pressure: | 20Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | DN10-DN150,3/4"-4" |
| Availably connection: | weld |
| Operated: | Manual |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Handle application: | Stainless steel pull handle |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
Lead Time:
For large quantity, as usual, it can be sent out within 20-40 days.
Small parcel will be dispatched by DHL, FEDEX, UPS OR TNT Courier.
Big cargo will be delivered by Air freight or By Sea.
Our Service:
About payment:
Payment methods: L/C, T/ T, Western Union
About samples:
We can provide samples production and service. Usually 2 to 5 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea, by air or by express. Any question about samples, please contact us.
For OEM products:
We will finish the production within 20-40 days after payment has been confirmed.
About delivery and shipping:
We will choose the delivery way as you required: by sea, by air, by express ect. Save your cost is our mission.
Warranty:
Any question or problem will be respond within 24 hours.
Lifetime service:
Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
Problem solve:
If you can't solve the problem in your local, please delivery the product to us, we will repair it and then back to you.
Quality control:
All the products are calibrated with real working condition, and tested before shipping as qualified product.
Integrity: All the warranty and guarantee from us will be put into come true

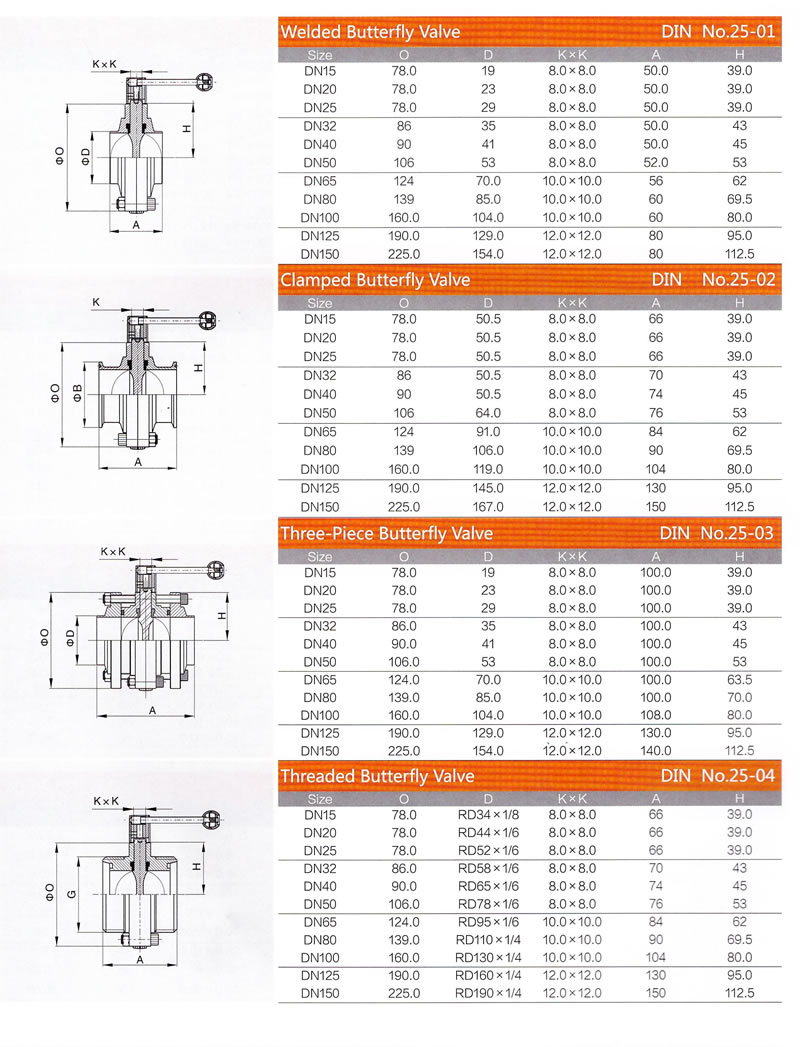

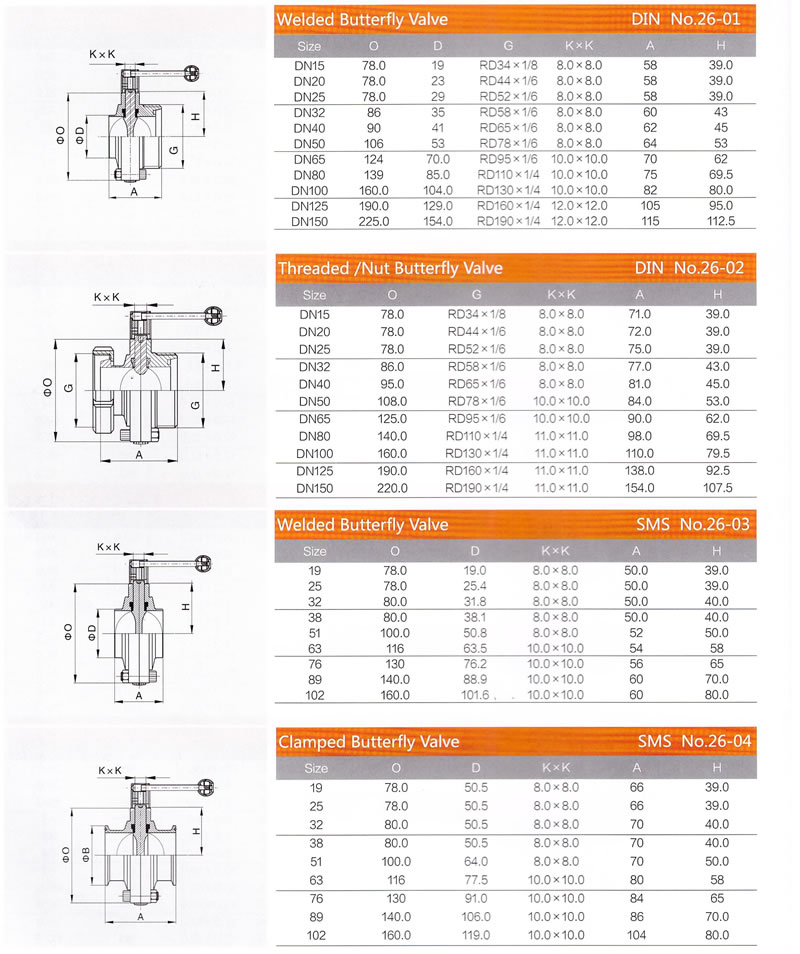

Technical Parameters:
| Product Wetted Steel Parts | AISI304/AISI316L | Provided with material inspection report | |||||
| Other Steel Parts | AISI304 | ||||||
| Size | 1/2"~6",DN10~DN150 | ||||||
| Seal material | EPDM/VMQ/FPM | ||||||
| Working pressure | ≤10bar(145psi) | ||||||
| Working temperature | PDM:-14~248ºF(-10~120ºC) | ||||||
| VMQ:-58~356ºF(-50~180ºC) | |||||||
| FPM:22~446ºF(-30~230ºC) | |||||||
| Other materials are avaible upon request | |||||||
| Sterilization temperature | 302ºF(150ºC,max 20min) | ||||||
| Outside surface treatment | Ra16~32uin(o.4~0.8um) | ||||||
| Inside surface treatment | Ra32~64uin(o.8~1.6um) | ||||||
| Connetion ends | butt-weld,clamped ends,male ends, flange ends | ||||||
| Pneumatic head | Normally closed(NC)-Air to open,spring to close | ||||||
| Normally open(NO)-Air to close,spring to open | |||||||
| Air to air(AA)-Air to open,air to close | |||||||
